Elbows
Butt Weld Steel Elbows is a pipe fitting that is manufactured to connect pipe(s) by welding on its end(s). Elbows allow change in direction between 45 to 90 degrees.
Elbows Video
Types of elbows
There are two kinds of elbows
- SR Elbow: Short Radius Elbow
- LR Elbow: Long Radius Elbow

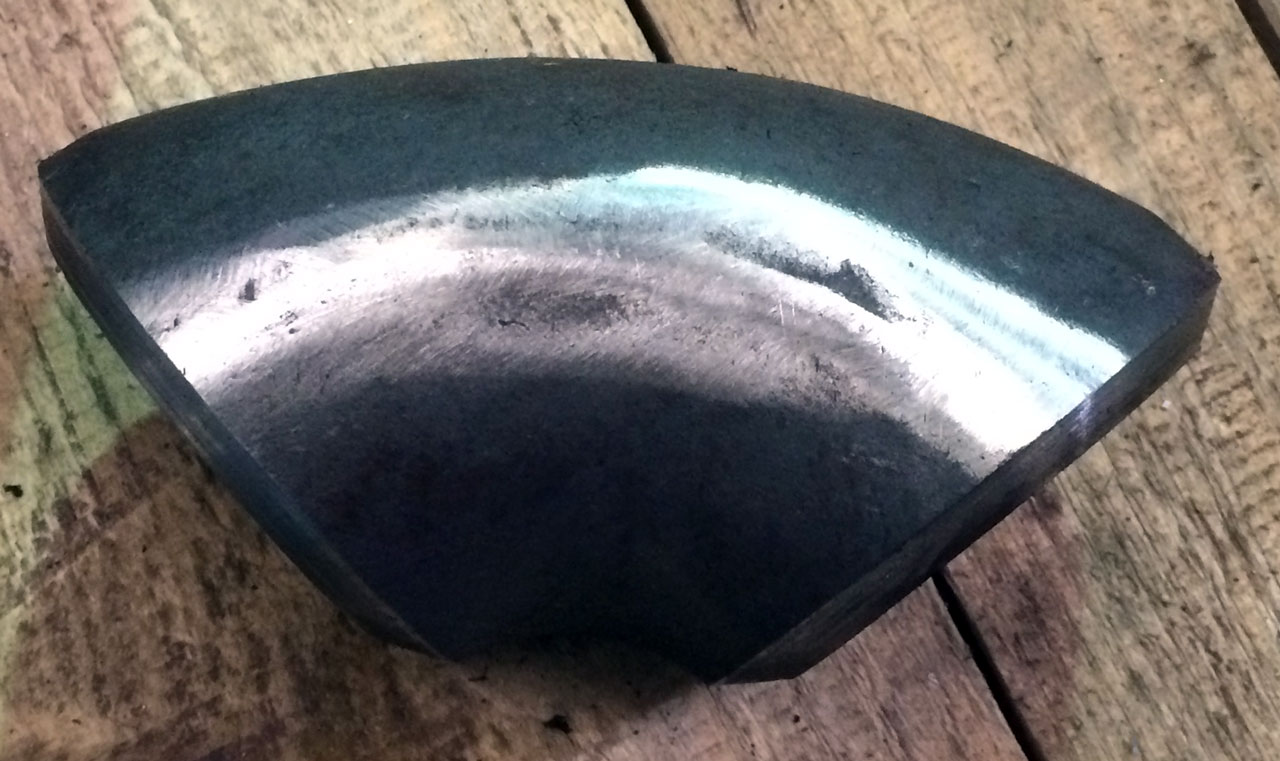

Elbow Pictures (butt weld elbows)
(Click on the pictures for larger sizes. )

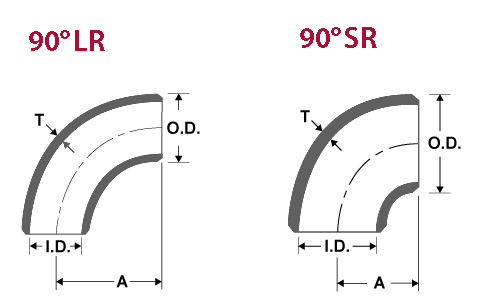

Butt Weld Steel ElbowElbow Technical Drawings
90 Degree SR & LR Elbows
Advantages of butt weld elbows:
- Less material less cost
Elbows connect pipes via butt welding. Compared to threaded elbows, they require 10%-75% less material
- Less material less weight
Total weight is also reduced for elbows
- Powerful & tight
No threaded connection cuts extra space, and adds an extra strong hold
- Less frictional loss of energy
Better total energy saving in flow and transfer
Manufacturing Details of Elbows
Steel Standards and Quality
| Europe | Germany | UK | Japan | USA | Int. | |
|---|---|---|---|---|---|---|
| Standard | EN 10025 | DIN 17100 | BS 4360 | JIS 3101 | ASTM | ISO 630 |
| Quality | S235JR | ST37-2 | 40A | SS34 | A283C | Fe360B |
Manufacturing Method
- Cold Press
- CFS (Cold Formed Steel)
Elbow Dimensions (Butt Weld Pipe Fitting)
We manufacture elbow sizes listed in the table below. Different sized elbows (not listed below) can also be manufactured depending on the size of the order.
(60 Degree, 73 Degree, 76 Degree, 82.5 Degree and 90 Degree butt weld elbows)
| Angle (degree) | Type |
|---|---|
| 90 | SR |
| 90 | LR |
| 82.5 | SR |
| 82.5 | LR |
| 76 | SR |
| 76 | LR |
| 73 | SR |
| 60 | SR |
| 60 | LR |
